Ducati Diavel Top Speed

Ducati Diavel Top Speed

Displacement

1,262 cc (77.0 cu in)

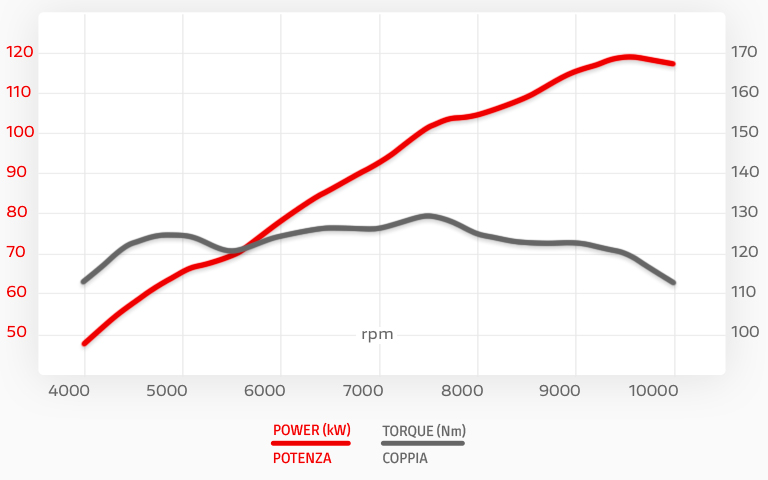

Power*

162 hp (119 kW) @ 9,500 rpm

Torque*

13.2 kgm (129 Nm, 95 lb ft) @ 7,500 rpm

Dry Weight

223 kg (487 lb)

Seat Height

780 mm (30.7 in)

Safety Equipment

Riding Modes, Power Modes, Cornering ABS, Ducati Traction Control, Ducati Wheelie Control, full-LED lighting system

Valve Clearance Check (DesmoService)

15,000 km (9,000 miles) / 12 months

Tech specs

Engine

Type

Ducati Testastretta DVT 1262, L-Twin cylinder, 4 valves per cylinder, Dual Spark, Liquid cooled, Desmodromic Variable Timing

Ducati Testastretta DVT 1262, L-Twin cylinder, 4 valves per cylinder, Dual Spark, Liquid cooled, Desmodromic Variable Timing

Displacement

Bore X Stroke

Compression Ratio

Power*

162 hp (119 kW) @ 9,500 rpm

162 hp (119 kW) @ 9,500 rpm

Torque*

13.2 kgm (129 Nm, 95 lb ft) @ 7,500 rpm

13.2 kgm (129 Nm, 95 lb ft) @ 7,500 rpm

*The power/torque values indicated are measured using an engine dynamometer according to homologation regulation and they correspond to the homologated data, as quoted in the Bike Registration Document.

*The power/torque values indicated are measured using an engine dynamometer according to homologation regulation and they correspond to the homologated data, as quoted in the Bike Registration Document.

Fuel Injection

Bosch electronic fuel injection system, Øeq 56 mm elliptical throttle bodies with Ride-by-Wire system.

Bosch electronic fuel injection system, Øeq 56 mm elliptical throttle bodies with Ride-by-Wire system.

Exhaust System

Stainless steel muffler, catalytic converter and 2 lambda probes

Stainless steel muffler, catalytic converter and 2 lambda probes

Transmission

Gearbox

6 speed with Ducati Quick Shift up/down Evo (DQS)

Primary Drive

Straight cut gears, Ratio 1.84:1

Straight cut gears, Ratio 1.84:1

Ratios

1=37/15, 2=30/17, 3=27/20, 4=24/22, 5=23/24, 6=22/25

1=37/15, 2=30/17, 3=27/20, 4=24/22, 5=23/24, 6=22/25

Final Drive

Chain, Front sprocket Z15, Rear sprocket Z43

Chain, Front sprocket Z15, Rear sprocket Z43

Clutch

Slipper and self-servo wet multiplate clutch with hydraulic control

Slipper and self-servo wet multiplate clutch with hydraulic control

Chassis

Frame

Tubular steel trellis frame

Tubular steel trellis frame

Front Suspension

Ø 50 mm adjustable usd fork

Ø 48 mm Öhlins adjustable usd fork, TiN treatment.

Rear Suspension

Monoshock, preload and rebound adjustable, Aluminium casted single-sided swingarm

Öhlins fully adjustable monoshock, Aluminium casted single-sided swingarm.

Rear Wheel

Light alloy casted 8.0"x17"

Light alloy casted and machined 8.0"x17"

Rear Tyre

Pirelli Diablo Rosso III 240/45 ZR17

Pirelli Diablo Rosso III 240/45 ZR17

Wheel Travel (Front/Rear)

120 mm / 130 mm (4.7 in / 5.1 in)

120 mm / 130 mm (4.7 in / 5.1 in)

Front Brake

2 x Ø 320 mm semifloating discs, radial mounted Brembo monobloc 4-piston M4.32 callipers, PR18/19 radial master cylinder, Cornering ABS

2 x Ø 320 mm semifloating discs, radial mounted Brembo monobloc 4-piston M4.32 callipers, PR18/19 radial master cylinder, Cornering ABS

Rear Brake

Ø 265 mm disc, Brembo 2-piston floating calliper, Cornering ABS

Ø 265 mm disc, Brembo 2-piston floating calliper, Cornering ABS

Instrumentation

3.5" TFT colour display and dedicated warning light display

3.5" TFT colour display and dedicated warning light display

Front Tyre

Front Tyre

Pirelli Diablo Rosso III 120/70 ZR17

Pirelli Diablo Rosso III 120/70 ZR17

Dimensions and Weights

Dry Weight

Weight in running order*

*The weights in running order are considered with all operating fluids, standard equipment and the fuel tank filled to 90% of its useful capacity (UE regulation no. 168/2013).

*The weights in running order are considered with all operating fluids, standard equipment and the fuel tank filled to 90% of its useful capacity (UE regulation no. 168/2013).

Seat Height

Wheelbase

Rake

Trail

Fuel Tank Capacity

17 l (4.5 US Gal)** ** 16 l (4.2 US Gal) for US/Canada/Mexico version

17 l (4.5 US Gal)** ** 16 l (4.2 US Gal) for US/Canada/Mexico version

Number of Seats

Equipment

Safety Equipment

Riding Modes, Power Modes, Cornering ABS, Ducati Traction Control, Ducati Wheelie Control, full-LED lighting system

Riding Modes, Power Modes, Cornering ABS, Ducati Traction Control, Ducati Wheelie Control, full-LED lighting system

Standard Equipment

Ducati Power Launch, cruise control, hands-free, backlit handlebar switches, 3.5" TFT colour display

Ducati Power Launch, cruise control, hands-free, backlit handlebar switches, 3.5" TFT colour display

Provided Equipment

Ready for

Ducati Quick Shift, Ducati Multimedia System

Ducati Quick Shift, Ducati Multimedia System

Warranty and Maintenance

Warranty

24 months, Unlimited mileage

24 months, Unlimited mileage

Valve Clearance Check (DesmoService)

15,000 km (9,000 miles) / 12 months

15,000 km (9,000 miles) / 12 months

Valve Clearance Check

Emissions and Consumption

Standard

CO2 Emissions

Consumption

Notes

Only for countries where Euro 4 standard applies *: Where Euro 5 is applied

Only for countries where Euro 4 standard applies *: Where Euro 5 is applied
